Escalator

     Escalators, automatic pedestrian elevators, armrest elevators, and escalators are the means of transportation to transport pedestrians in a conveyor belt. The escalator is generally inclined. The step of the pedestrian at one end of the escalator will automatically be taken to the other end of the escalator, and the ladder will keep the level on the way. The outdoor escalator has a handrail on both sides of the ladder that is synchronized with the ladder for the user to hold. The escalator can walk in one direction forever, but most of them can control the direction of walking by the managers according to the needs of time, people flow and so on .
     Escalator has two kinds of point of view for the user to choose, 35 degrees of escalator for you save floor space, 30 degrees of escalator to provide you with a better ride comfort. Apply to shopping malls, large supermarket, subway, airport traffic, the flow of the construction of a bright scenery for you.

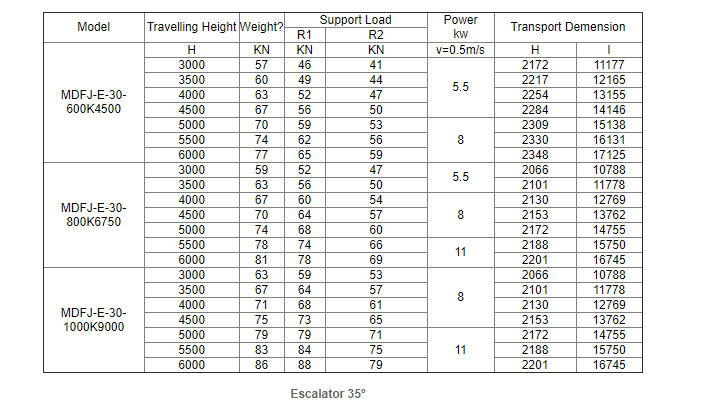

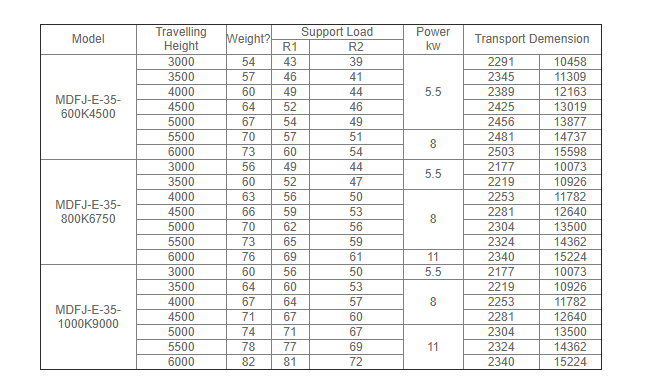

 Main Specification:
Product Type: Escalator

Target Markets: Supermarket, shopping mall

Tilt Angle: 30 °/35 °

Step Width (mm): 600/800/1000

Operating Speed (m/s): 0.5

Horizontal Steps: 2/3

Rated speed (m/s): 0.5/1.0

Lifting Height (m): 3.0 - 9.7

Arrangement: One-way traffic / two-way traffic / cross


Standard Features
1.Manual oiling
2.Built-in chain roller step
3.Inclined handrail
4.Demarcation lamp
5.Handrail inlet
6.Table type traction machine

Optional Features
1.Running direction indication
2.Handrail illumination
3.EHC colorful handrail
4.VVVF controller
5.Skirt panel brush
6.Automatic start & stop
7.Automatic oiling
8.Step lights



---

---

Application

    Escalator is the most efficient passenger equipment for continuous transportation between buildings. In the large commercial complex of human flow, escalator is one of the most important carriers to maximize the commercial value.
