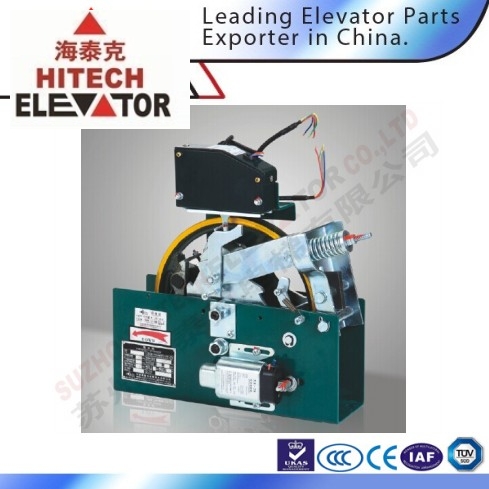

Elevator Speed Governor/OX240A,1.75M/S

   If the elevator descends with excessive speed, the descending brake will be used to support the general descending safety gear, enable the safety gear, and stop the car, playing the role of descending over-speed protection.

If the elevator ascends with excessive speed, the over-speed switch can be turned off to cut off the power and stop the car, playing the role of ascending over-speed protection. The electromagnet switch can be used to detect the actuation of the speed governor, and detect the elevator.

Rated speed:≤ 1.75m/s

Wire rope diameter(mm): Φ6,Φ6.3,Φ8

Sheave diameter(mm): Φ240

Tension force:≥1000N

Super switch voltage grade:AC220V/DC24V

Switch voltage grade:AC220V/DC24V

Action magnet voltage grade:AC220V/DC24V
The remote control is available.

Porducts can be packed in wooden cases and carton box
