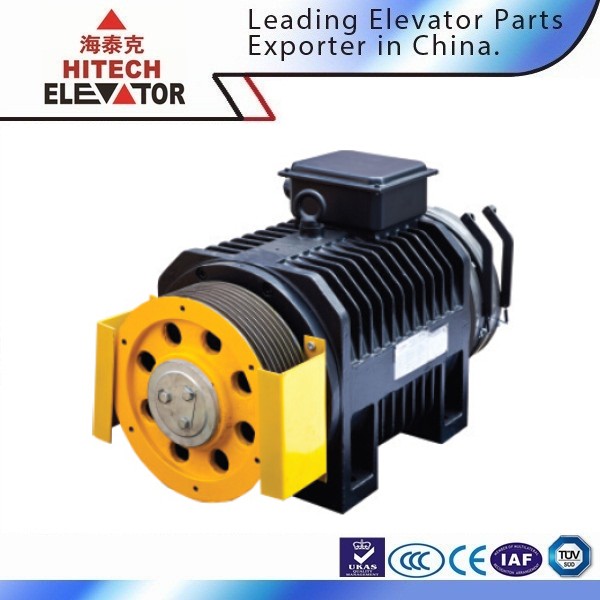

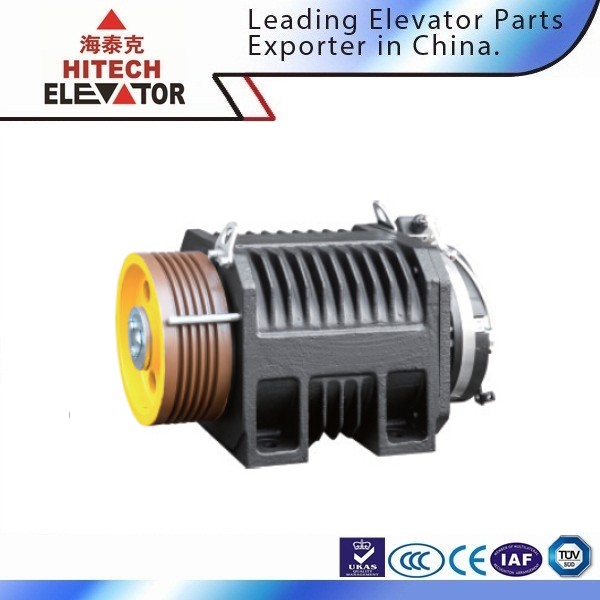

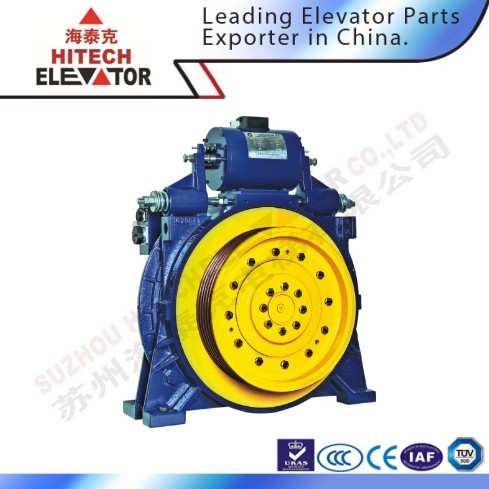

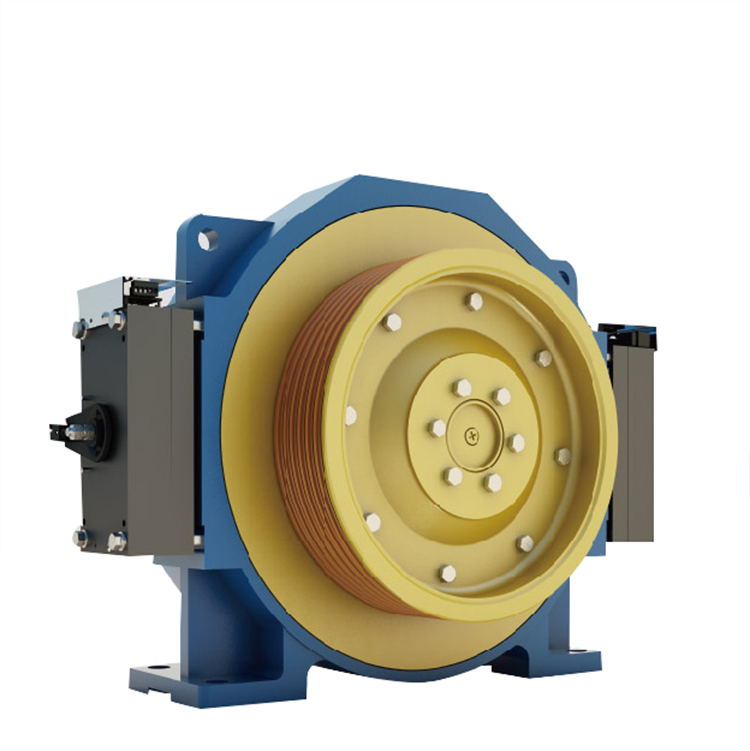

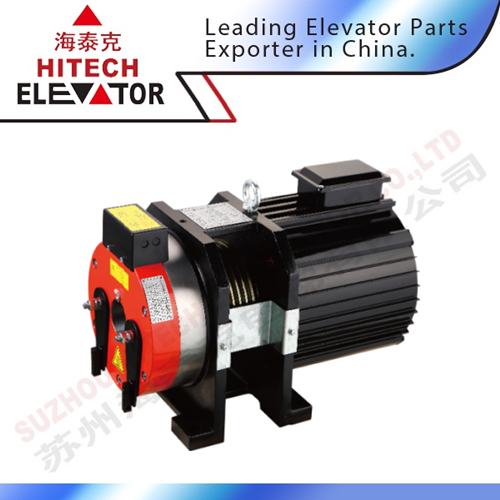

Gearless Traction Machine
Elevator Motor (ROPING = 2:1)
Elevator Motor (ROPING =(2:1)
Description
Code |
Capacity(KGS) |
Speed(m/s) |
Power(KW) |
Traction Sheave(mm) |
Travel Height |
41T-W7 |
320 |
1 |
2.5 |
Φ325*3*Φ8*12 |
<=80M |
1.5 |
3.7 |
1.6 |
4 |
1.75 |
4.3 |
450 |
1 |
3.3 |
Φ325*4*Φ8*12 |
1.5 |
4.9 |
1.6 |
5.3 |
1.75 |
5.7 |
550 |
0.63 |
2.3 |
Φ325*5*Φ8*12 |
0.75 |
2.7 |
1 |
3.6 |
630 |
0.63 |
2.5 |
0.75 |
3 |
1 |
4 |
41T-W9 |
630 |
1 |
4.2 |
Φ400*5*Φ10*16 |
<=100M |
1.5 |
6.3 |
1.6 |
6.7 |
1.75 |
7.3 |
2 |
8.4 |
800 |
1 |
5.3 |
1.5 |
8 |
1.6 |
8.5 |
1.75 |
9.3 |
2 |
10.7 |
1000 |
1 |
6.5 |
1.5 |
9.8 |
1.6 |
10.4 |
1.75 |
11.4 |
2 |
13.1 |
1150 |
1 |
7.6 |
Φ340*8*Φ8*12 |
1.5 |
11.4 |
1.6 |
12.3 |
1.75 |
13.5 |
2 |
15.3 |
Code |
Capacity(KGS) |
Speed(m/s) |
Power(KW) |
Traction Sheave(mm) |
Travel Height |
41T-ERS |
320 |
1 |
2.2 |
Φ320*3*Φ8*12 |
<=80 |
1.5 |
3.3 |
1.6 |
3.5 |
1.75 |
3.8 |
450 |
1 |
3 |
Φ320*4*Φ8*12 |
1.5 |
4.5 |
1.6 |
4.8 |
1.75 |
5.3 |
630 |
1 |
4 |
Φ240*7*Φ6.5*12 |
<=80 |
1.5 |
6 |
1.6 |
6.4 |
1.75 |
7 |
41T-ER2D |
800 |
1 |
5.6 |
Φ320*3*Φ8*12 |
<=80 |
800 |
1.5 |
8.4 |
800 |
1.6 |
9 |
800 |
1.75 |
9.8 |
1000 |
1 |
6.9 |
Φ320*7*Φ8*12 |
1000 |
1.5 |
10.3 |
1000 |
1.6 |
11 |
1000 |
1.75 |
12 |
41T-ER3D |
1150 |
1 |
7.8 |
Φ320*8*Φ8*12 |
<=80 |
1150 |
1.5 |
11.8 |
1150 |
1.6 |
12.7 |
1150 |
1.75 |
13.8 |
1250 |
1 |
8.5 |
1250 |
1.5 |
12.7 |
1250 |
1.6 |
13.8 |
1250 |
1.75 |
14.9 |
