Project
Home Lift in Indonesia
Home Elevator: 400kgs, 0.4 m/s, 4/4/4, Floor Name: G,1,2,3
Machine Room Less Roping: 2:1.Shaft size: (W): 1500mm width X 1800mm Depth
Overhead:4500mm Pit: 1500mm.Floor Distance G:2400mm,1:2500mm,2:3500mm
All Door Panel : Hairline stainless steelCabin:1100W*1200D*2300H

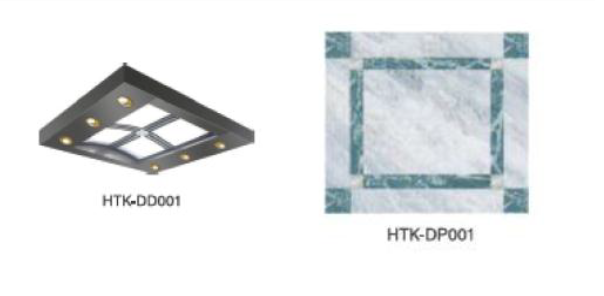

See Specification.H.S.S TypeDoor open size: 750mm(W)×2000mm(H), Two panels Side OpeningSimplex ModeDetailed Specifications:Cabin Hairline Stainless Steel (304),1.2mm thicknessProvided (On the Rear panel),Round Type Decorative Celling (See Specification)

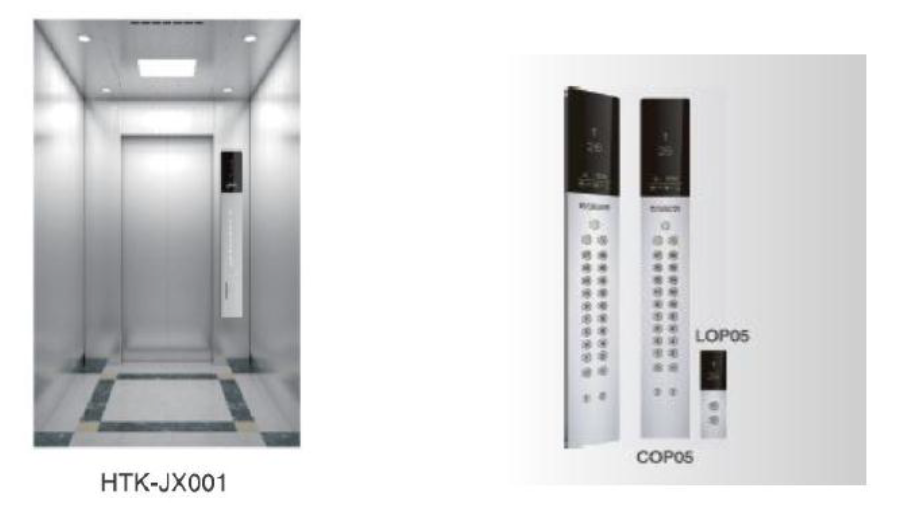

H.S.S LOP with LCD Display ,H,S,S Type with Box H.S.S COP with Back Box
Monarch Control system, Input power supply: AC220V, 1PH, 50HZ.Gearless Traction Machine with ARD.Floor: PVC ,See Below Photos
